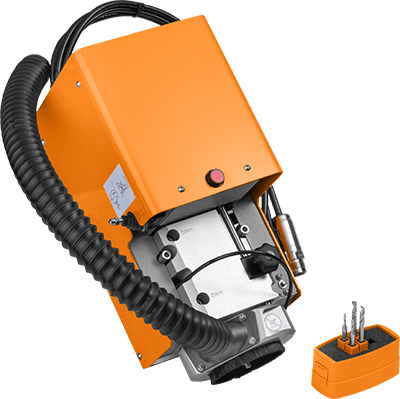

High-Power Milling Unit

Allows for milling, contour cutting, routing, drilling and engraving.

Interested in this tool, or do you want to find out more about our impressive range of tools? Contact our specialists today!

What is it used for?

The High-Power Milling Unit (HPMU) allows for milling, contour cutting, routing, drilling and engraving. It’s suitable for high speed routing in a wide range of materials such as foamed PVC, solid PVC/ PS, acrylic, aluminum composite material (ACM), MDF, wood, ...

The 3 kW milling spindle offers fast feed rates, thus considerably eases the bottleneck that routing jobs often present. The spindle features 3 kW of milling power and speeds up to 60,000 RPM. It is liquid cooled in order to utilize its full power potential.

The HPMU includes a software function to supervise and monitor the spindle current, which is useful to adjust the feed rate and RPM settings for new materials.

  • High quality routing at high speed.
  • High power, liquid cooled motor.
  • Large range of specialized and balanced milling bits.
  • Very fast milling bit exchange.
  • foamed PVC
  • solid PVC/PS
  • acrylic
  • aluminum
  • composite material (ACM)
  • MDF
  • wood

The maximum material thickness that can be milled is 50 mm (2 in.). For milling thickness exceeding 25 mm (1 in.) it is beneficial to use milling bits with a shank size of 8 mm, used with an optional collet that can be interchanged with the standard 6 mm collet.

  • Kongsberg C (Edge)
