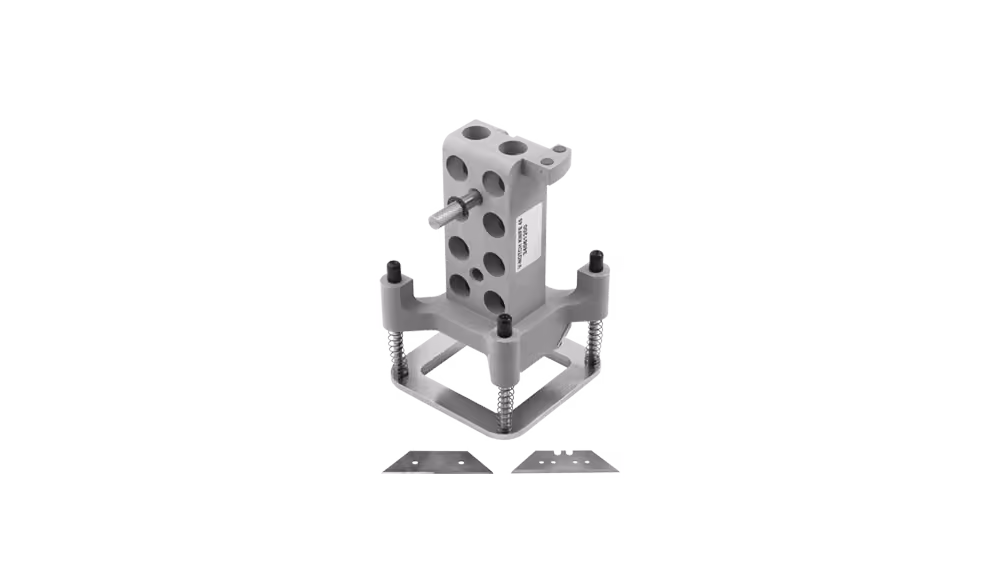

V-Notch Tool Insert
Perfect slanted folding lines in materials from 10 to 16 mm thick.
V-NOTCH & HEAVY-DUTY INSERT TOOLS
What is it used for
For V-notch cutting in triple-wall corrugated, corrugated plastic, and fluted core board, creating a 90° partially cut V-notch groove for folding, or a through-cut with a slanted edge.
Available in 45° (for 16 mm or 10-12 mm board) and 30° (for 16 mm board) versions. Combine with a HD Knife tool or RBI90-16 for an efficient fluted core board converter. Straight lines only.
- Perfect slanted folding lines in materials from 10 to 16 mm thick, depending on the version used
Features
Technical specifications and compatibility
Specifications
- Max thickness: 16 mm (VI45-16, VI30-16) or 10-12 mm (VI45-10)
- Suitable for table series:
X Series - Tool position:
MultiCUT, PowerHead, or FlexiHead
Materials
- Fluted core board
- Honeycomb board
- Soft foam board
- Triple-wall corrugated
If used on thinner materials than optimized for, reduced cutting quality (wavy lines) may occur; on very thin or rigid materials, the blade holder may loosen.
Compatible Knife Blades
