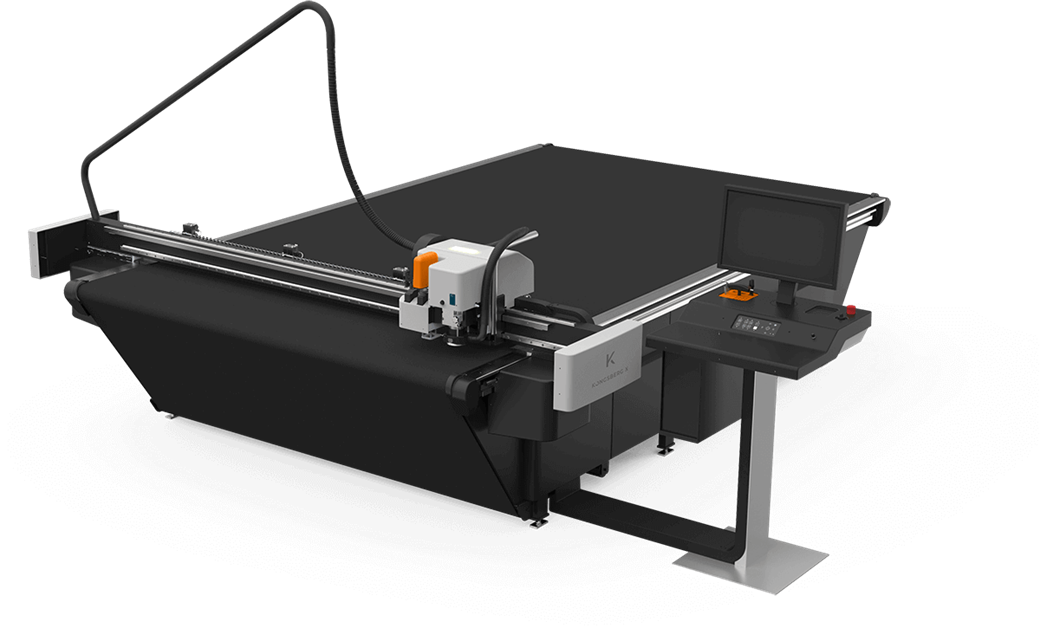

Kongsberg X cutting foamed PVC

A versatile match for your production

The X Series could be a strong fit for businesses working across different applications, materials and jobs. Its flexible configuration can adapt as production requirements evolve.

About the X Series

Why the X Series could fit your needs

The X Series could be a strong fit for varied applications, materials and production needs.
Its flexible configuration allows the platform to adapt as your requirements evolve.

Benefits

Built to grow your business

From new applications and materials to new markets and revenue streams, the X Series helps you grow your business without outgrowing your investment.

Versatile across applications

Produce packaging, signage, displays and more on one platform. Move easily between printed graphics, folding carton, corrugated board, vinyl and other thin materials, with accurate cutting, creasing and print-to-cut alignment.

‍

Flexible with materials

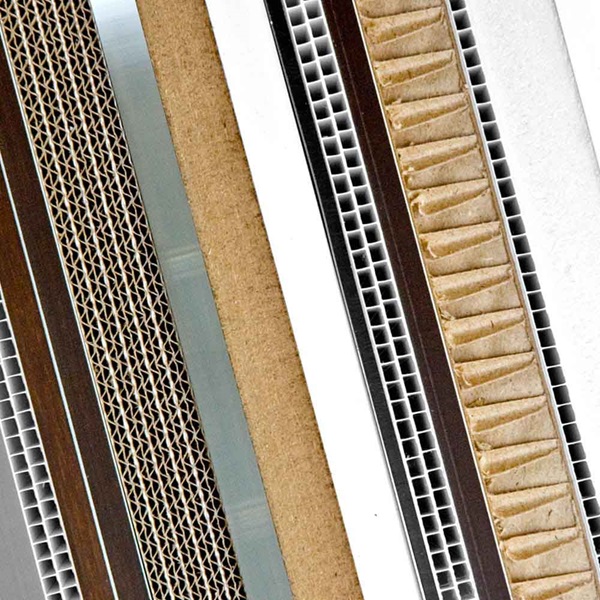

Work with everything from flexible media and foam to cardboard, plastics, wood, acrylic and aluminum composite material. Interchangeable tooling makes it easy to adapt the table to different materials and applications.

‍

Precision across different jobs

Handle detailed corners, clean folds, rigid-material milling and thick-foam cutting with consistent precision. The X Series gives you the flexibility to switch between different jobs without needing a separate solution for every application.

‍

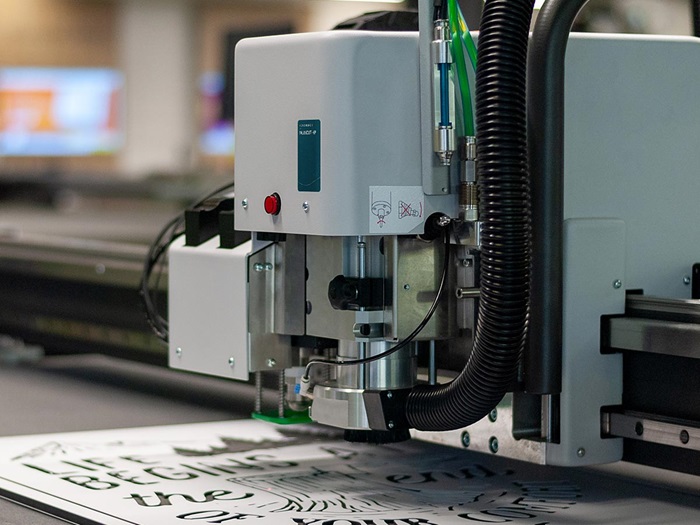

Kongsberg X cutting foamed PVC

Worfklow

From job file to finished product

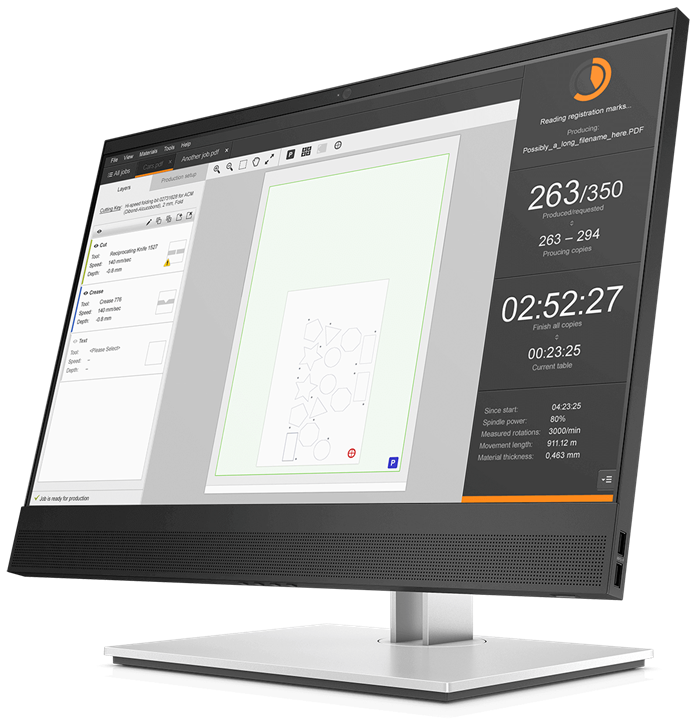

The X Series brings cutting, creasing, routing and perforating together in one workflow. The production file guides the table through each operation, while Shared Resources can select the appropriate tools, table settings and cutting sequence.

Tools are recognized and calibrated when loaded. Camera registration, barcode production, roll feeding and MultiZone production can further support the workflow, depending on the selected configuration.

Technical Specifications

Designed for your needs

‍

X20

X22

X24

X44

X46

X48

Work area (W × L)
1680 × 1270 mm / 66 × 50 in.
1680 × 2190 mm / 66 × 86 in.
1680 × 3200 mm / 66 × 126 in.
2210 × 3200 mm / 87 × 126 in.
2210 × 4800 mm / 87 × 189 in.
2210 × 6550 mm / 87 × 258 in.
Maximum material size (without conveyor)
2210 × 6550 mm / 87 × 258 in.
1740 × 2570 mm / 68 × 101 in.
1740 × 3575 mm / 68 × 140 in.
2270 × 3575 mm / 89 × 140 in.
2270 × 5250 mm / 89 × 206 in.
2270 × 6930 mm / 89 × 273 in.
Maximum acceleration
5.6 m/s² / 0.56 G
5.6 m/s² / 0.56 G
5.6 m/s² / 0.56 G
5.4 m/s² / 0.54 G
5.4 m/s² / 0.54 G
5.4 m/s² / 0.54 G
Material hold-down vacuum sections
2
2
4
4
4
4

Free guide

5 ways to make money with a Kongsberg cutting table

Find out how you can use a Kongsberg cutting table to extend on your offerings and protect your margins.

Real impact

Success stories and results to back it up

Cartonlab

|

Ecodesign firm

“The Kongsberg X cutting table for our design team is like a toy. Everyone here knows how to use it and they use it freely for innovation.”

Pays for itself within 3 years
‍
  • The entire team runs the X24 with ease
  • Mockups for large-scale projects take shape in minutes
  • Free experimentation sparks real innovation

Godin

|

Independent printing, display, fulfillment, and production house

“We wanted to have the best machines, we wanted to have full automation so we were as competitive as we could be”

One operator now runs two full production lines
‍
  • Speed, precision and simple controls open the door to real expansion
  • Tooling options diversify the offering, which attracts new clients
  • The ROI already shows on the machines that are in place

FOTO THUN

|

Photo product supplier

“One of the benefits since installing the Kongsberg X is that we have definitely gained new customers, with new products that we didn't have before.”

New customers followed, from day one
‍
  • The client base gained new names
  • Entirely new products now fill the catalog
  • Every repeat job holds the same high quality

take it with you

Downloads

All downloadable information related to the Kongsberg C Series

Brochure

Kongsberg X Series Brochure

PDF - 1 MB - EN

Catalog

Kongsberg X Tooling Guide

PDF - 2.8 MB - EN

Catalog

Bits & Blades Catalog

PDF - 4.5 MB - EN

Talk to an expert

Validate your next investment

See how the Kongsberg X fits your workflow before you buy. Test your materials, ask questions, and evaluate the results firsthand.

  • Benchmark your applications using your own materials
  • Challenge our technology with real production scenarios
  • Find new efficiencies in throughput, quality, and automation
