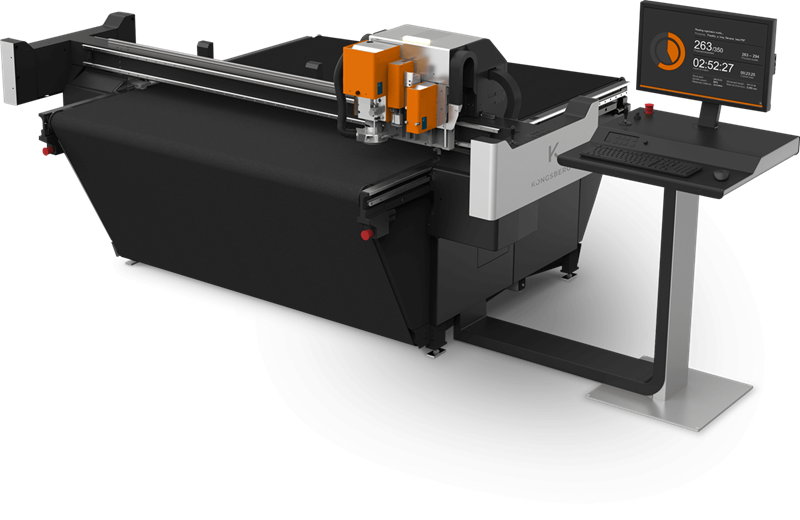

The new Kongsberg C20 is the smallest high-speed production table on the market today.
With a compact size of 1.6x1.4 m, the new Kongsberg C20 packs all the same professional features and specifications as its bigger counterparts. This means that there is no longer a trade-off between size and production capabilities!
State-of-the-art, rock-solid engineering ensures the Kongsberg C Series delivers the highest levels of performance.
The C20 cutting table utilizes aerospace technology, combining an aluminum composite tabletop, a rack and pinion drive system, and dynamic table mapping, which together deliver the greatest cutting accuracy and consistency. The C20 has a maximum speed of 100 m/min (66 IPS) and maximum acceleration of 1.72 G.
A wide range of tool combinations are available during production, and the tooling system includes a material thickness probe and an optional camera for registering printed and unprinted material.
Loic Maiche, CEO, ADMWe have had Kongsberg tables for about 10 years – they are very reliable machines, offering a constant production capacity. They run all day without any problem. The tables are suitable for prototyping and production and can handle very complex, fine cutting.
| C20 | C24 | C44 | C60 | C64 | C66 | ||
| Work area | 1680 x 1430 66 x 56 |
1680 x 3200 66 x 126 |
2210 x 3200 87 x 126 |
3210 x 1600 126.37 x 63 |
3210 x 3200 126.37 x 126 |
3210 x 4800 126.37 x 189 |
mm in. |
| Work area, MultiZone production, standard tabletop | n/a |
1680 x 1450 66 x 57 |
2210 x 1450 87 x 57 |
n/a | 3210 x 1600 126 x 63 |
3210 x 2210 126 x 87 |
mm in. |
| Max. material size, w/o conveyor feed | 1740 x 1900 68 x 75 |
1740 x 3700 68 x 146 |
2270 x 3700 89 x 146 |
3330 x 2125 131 x 83½ |
3330 x 3730 131 x 147 |
3330 x 5330 131 x 210 |
mm in. |
| Max. material width, w/ conveyor feed | 1680 66 |
1680 66 |
2210 87 |
3210 126½ |
3210 126½ |
n/a | mm in. |
| Overall dimensions incl. workstation | 3600 x 2300 142 x 91 |
3600 x 3900 142 x 154 |
4100 x 3900 161 x 154 |
5100 x 2320 201 x 91½ |
5100 x 3920 201 x 154½ |
5100 x 5520 201 x 217 |
mm in. |
| Overall dimensions excl. workstation | 2760 x 2300 109 x 91 |
2760 x 3900 109 x 154 |
3260 x 3900 128 x 154 |
4260 x 2320 168 x 91½ |
4260 x 3920 168 x 154½ |
4260 x 5520 168 x 217 |
mm in. |
| Weights | 800 1765 |
600 1325 |
800 1760 |
800 1760 |
1300 2870 |
1750 3960 |
kg lbs |
| Max. speed | 100 66 |
m/min IPS |
|||||
| Max. acceleration | 1.72 G | 1.72 G | 1.65 G | 1.57 G | 1.57 G | 1.57 G | |
| Vacuum sections | 4 | 8 | 8 | 4 | 8 | 8 | |
| Traverse clearance (excl. cutting underlay) | 70 2.75 |
mm in. |
|||||
