Blazing speed on the smallest cutting table

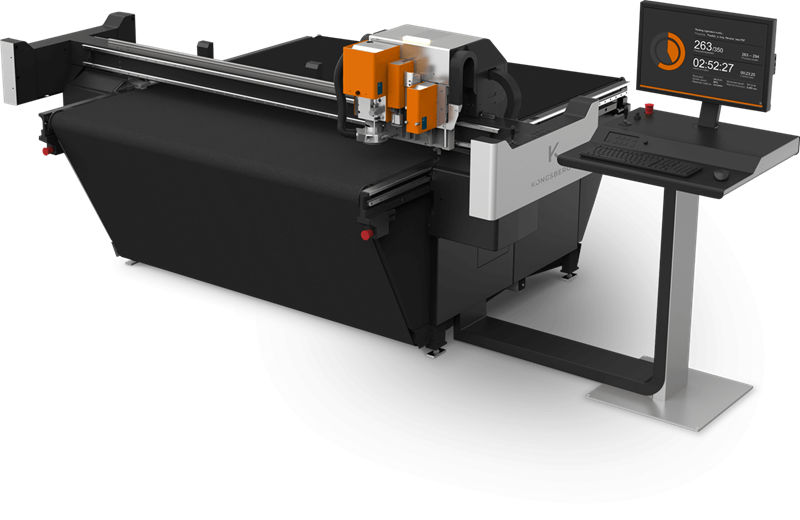

The new Kongsberg C20 is the smallest high-speed production table on the market today.

With a compact size of 1.6m x 1.4m, the new Kongsberg C20 packs all the same professional features and specifications as its bigger counterparts. This means that there is no longer a trade-off between size and production capabilities!

Your question or comment *

First name *

Last name *

Email *

Phone *

Company name *

Country *

State *

Hardware Attribution_campaign Attribution_source

By checking this box I agree to the Kongsberg PCS privacy policy, and to receive further information regarding its solutions and services. I understand that I can opt out at any time. *

It's free and only takes 5 seconds!

Benefits of the Kongsberg C20

No compromise between size and throughput

Significantly smaller footprint

Accuracy, consistency and raw production power

State of the art features

State-of-the-art, rock-solid engineering ensures the Kongsberg C Series delivers the highest levels of performance.

The C20 cutting table utilizes aerospace technology, combining an aluminum composite tabletop, a rack and pinion drive system, and dynamic table mapping, which together deliver the greatest cutting accuracy and consistency. The C20 has a maximum speed of 100 m/min (66 IPS) and maximum acceleration of 1.72 G.

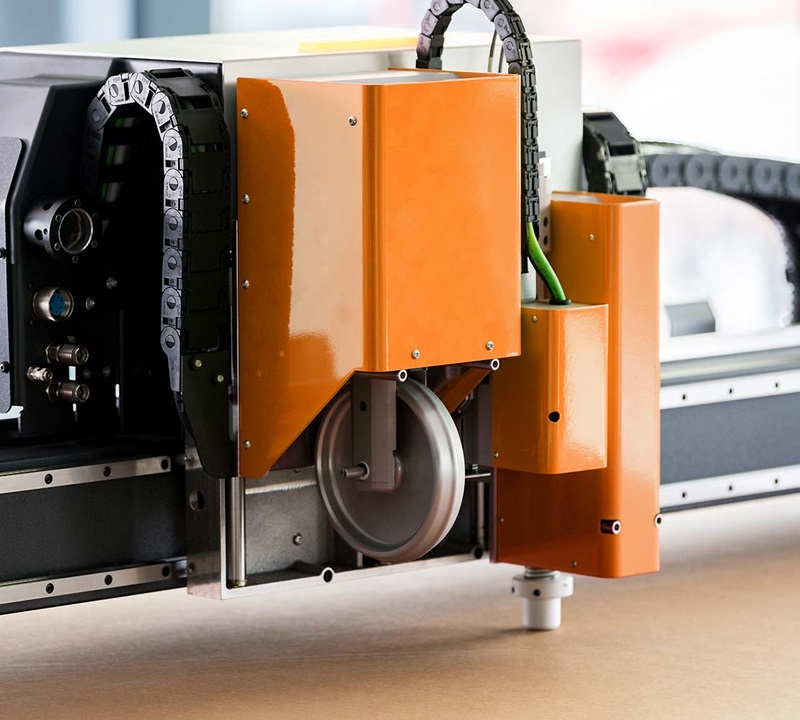

A wide range of tool combinations are available during production, and the tooling system includes a material thickness probe and an optional camera for registering printed and unprinted material.

Technical specifications

	C20	C24	C44	C60	C64	C66
Work area	1680 x 1430 66 x 56	1680 x 3200 66 x 126	2210 x 3200 87 x 126	3210 x 1600 126.37 x 63	3210 x 3200 126.37 x 126	3210 x 4800 126.37 x 189	mm in.
Work area, MultiZone production, standard tabletop	n/a	1680 x 1450 66 x 57	2210 x 1450 87 x 57	n/a	3210 x 1600 126 x 63	3210 x 2210 126 x 87	mm in.
Max. material size, w/o conveyor feed	1740 x 1900 68 x 75	1740 x 3700 68 x 146	2270 x 3700 89 x 146	3330 x 2125 131 x 83½	3330 x 3730 131 x 147	3330 x 5330 131 x 210	mm in.
Max. material width, w/ conveyor feed	1680 66	1680 66	2210 87	3210 126½	3210 126½	n/a	mm in.
Overall dimensions incl. workstation	3600 x 2300 142 x 91	3600 x 3900 142 x 154	4100 x 3900 161 x 154	5100 x 2320 201 x 91½	5100 x 3920 201 x 154½	5100 x 5520 201 x 217	mm in.
Overall dimensions excl. workstation	2760 x 2300 109 x 91	2760 x 3900 109 x 154	3260 x 3900 128 x 154	4260 x 2320 168 x 91½	4260 x 3920 168 x 154½	4260 x 5520 168 x 217	mm in.
Weights	800 1765	600 1325	800 1760	800 1760	1300 2870	1750 3960	kg lbs
Max. speed	100 66						m/min IPS
Max. acceleration	1.72 G	1.72 G	1.65 G	1.57 G	1.57 G	1.57 G
Vacuum sections	4	8	8	4	8	8
Traverse clearance (excl. cutting underlay)	70 2.75						mm in.
